Descripción
INFORMACIÓN TÉCNICA
Conjunto del cuadro
 |
Cuadro | Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12×142 |
 |
Horquilla | Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12×100 |
 |
Juego de dirección | Totally Internal Cable routing |
Transmisión
 |
Cambio Trasero | Shimano DURA-ACE Di2 R9250 12v |
 |
Desviador | Shimano DURA-ACE Di2 R9250 12v |
 |
Manetas cambio | Shimano DURA-ACE Di2 R9250 12v |
 |
Plato | Medidor de potencia Shimano DURA-ACE Di2 R9200-P 12s 52-36T |
 |
Piñon | Shimano DURA-ACE Di2 R9200 12s 11-30T |
Frenos
 |
Conjunto de frenos | Disco Hidráulico Shimano DURA-ACE Di2 R9270 12v |
Ruedas
 |
Cubiertas | Vittoria Corsa G2.0 28×700 |
 |
Bujes | DT Swiss ARC 1100 50 / Mavic Cosmic SLR 45 |
 |
Llantas | DT Swiss ARC 1100 50 / Mavic Cosmic SLR 45 |
Componentes
 |
Manillar | Carbon Full Integratted Internal Cable Routing: 90/400 (XS,S), 100/400 (S,M), 110/420 (M,L), 120/440 (L,XL) |
 |
Tija sillín | Aerodinamic Advanced Carbon Seat Post |
 |
Sillín | Selle Italia SLR Boost Superflow Carbono |
| Nos reservamos el derecho a modificar la información de la web sin previo aviso, incluido las especificaciones, modelos, colores y materiales. |

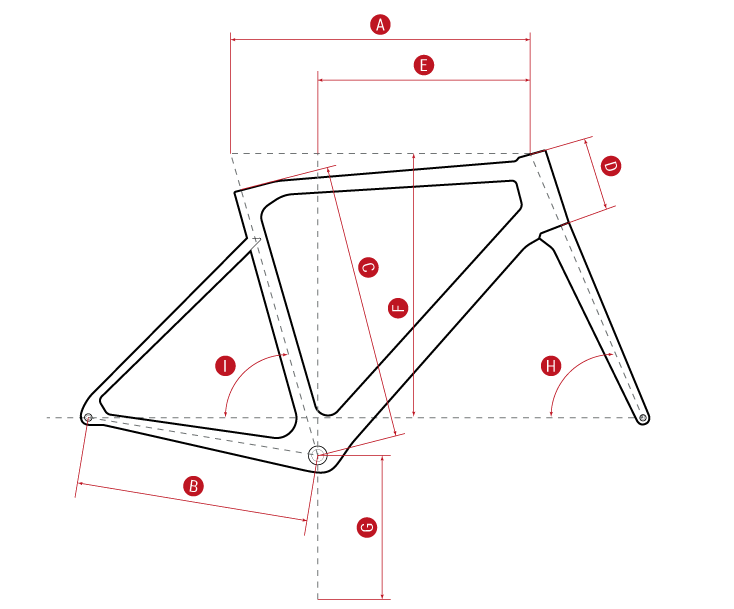

GEOMETRÍA PULSE ELITE 05 (22)
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
|
A
|
T/T | 510 | 520 | 541 | 562 | 584 |
|
B
|
C/S | 405 | 405 | 405 | 405 | 405 |
|
C
|
S/T | 450 | 480 | 500 | 520 | 540 |
|
D
|
H/T | 105 | 120 | 138 | 155 | 175 |
|
E
|
REACH | 371 | 374 | 387 | 398 | 409 |
|
F
|
STACK | 500 | 515 | 536 | 554 | 573 |
|
G
|
BB HEIGHT | 285 | 285 | 285 | 285 | 285 |
|
H
|
FRONT ANGLE | 71,5º | 71,5º | 72,5º | 73º | 73º |
|
I
|
REAR ANGLE | 74,5º | 74º | 74º | 73,5º | 73,5º |
HANDLEBAR AND STEM INTEGRATED:
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| 90/400 |  |
|
– | – | – | |
| 100/400 | – | |
|
– | – | |
| 110/420 | – | – | |
|
– | |
| 120/440 | – | – | – | |
|
| FIT GUIDE | |
| X-SMALL |
158 – 168
|
| SMALL |
165 – 172
|
| MEDIUM |
170 – 182
|
| LARGE |
182 – 190
|
| X-LARGE |
188 – 210
|
